Revolutionary 12 axes spring & wire forming machines that allow spring manufacturers to massively produce a variety of springs with high speed and accuracy! -
Special camless design equipped with SAMCO’s free arm technolgy that enables our series of spring machines to easily produce all kinds of difficult springs that is 30% or more efficient than traditional cam type spring former. -
Special camless design equipped with SAMCO’s free arm technolgy that enables our series of spring machines to easily produce all kinds of difficult springs that is 30% or more efficient than traditional cam type spring former. -
CNC8660 is 6-axis compression spring machine, this CNC spring machine for making compression spring, oil seal spring ,battery spring, torsion machine, etc -
CNC8635 is six-axis compression spring machine, this CNC spring machine for making compression spring, oil seal spring ,battery spring, torsion machine, etc

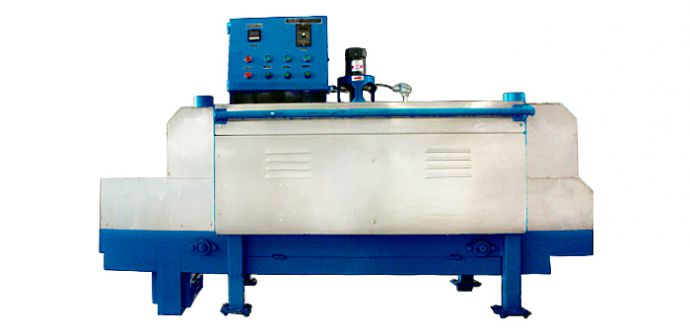

TF420 Continuous Tempering Furnance
Model: TF420
TF series continuous tempering furnance
TF Series Continuous Furnaces are the spring machine and equipment for heat processing food,which are very popular with users . Characterized by use of imported electrical components, variable speed devices, energy-saving (compared to other vendor products with the power to conserve electricity 30 %), warming up fast (can reach the setted temperature in 20 minutes), furnace temperature uniformity, stability, automatic control, high precision, continuous work product, easy to use and good reliability.Main Technique Parameter:
Model | Outside Dimensions(mm) | Hearth Diamensions(mm) | Power (kw) | rangte of tempering time(min) | Diamater of tempered pieces(mm) | Output of tempered pieces(kg/h) | Weight of furnace body(kg) | ||||
Length | Width | Height | Length | Width | Height | ||||||
TF210 | 2000 | 850 | 1250 | 1000 | 200 | 60、90 | 8 | 2.5-5.0 | 0.1-6 | 18-25 | 250 |
TF315 | 2600 | 950 | 1250 | 1500 | 300 | 90 | 16 | 4-55 | 0.1-6 | 35-50 | 750 |
TF420 | 3300 | 1050 | 1300 | 2000 | 400 | 90 | 26 | 6-60 | 0.5-6 | 60-80 | 1000 |
TF520 | 4100 | 1100 | 1600 | 2000 | 500 | 100 | 30 | 6-60 | 0.5-10 | 80-100 | 1400 |
TF530 | 5100 | 1100 | 1900 | 3000 | 500 | 120 | 40 | 8-60 | 0.5-10 | 150-180 | 1800 |
TF630 | 5100 | 1200 | 1900 | 3000 | 600 | 120 | 48 | 8-60 | 1-12 | 160-200 | 2200 |
TF740 | 6100 | 1300 | 2000 | 4000 | 700 | 180 | 68 | 10-120 | 1-16 | 250-350 | 3200 |
Tempering temperature:Temperature in furnace may be freely adjusted and set within 500℃.
